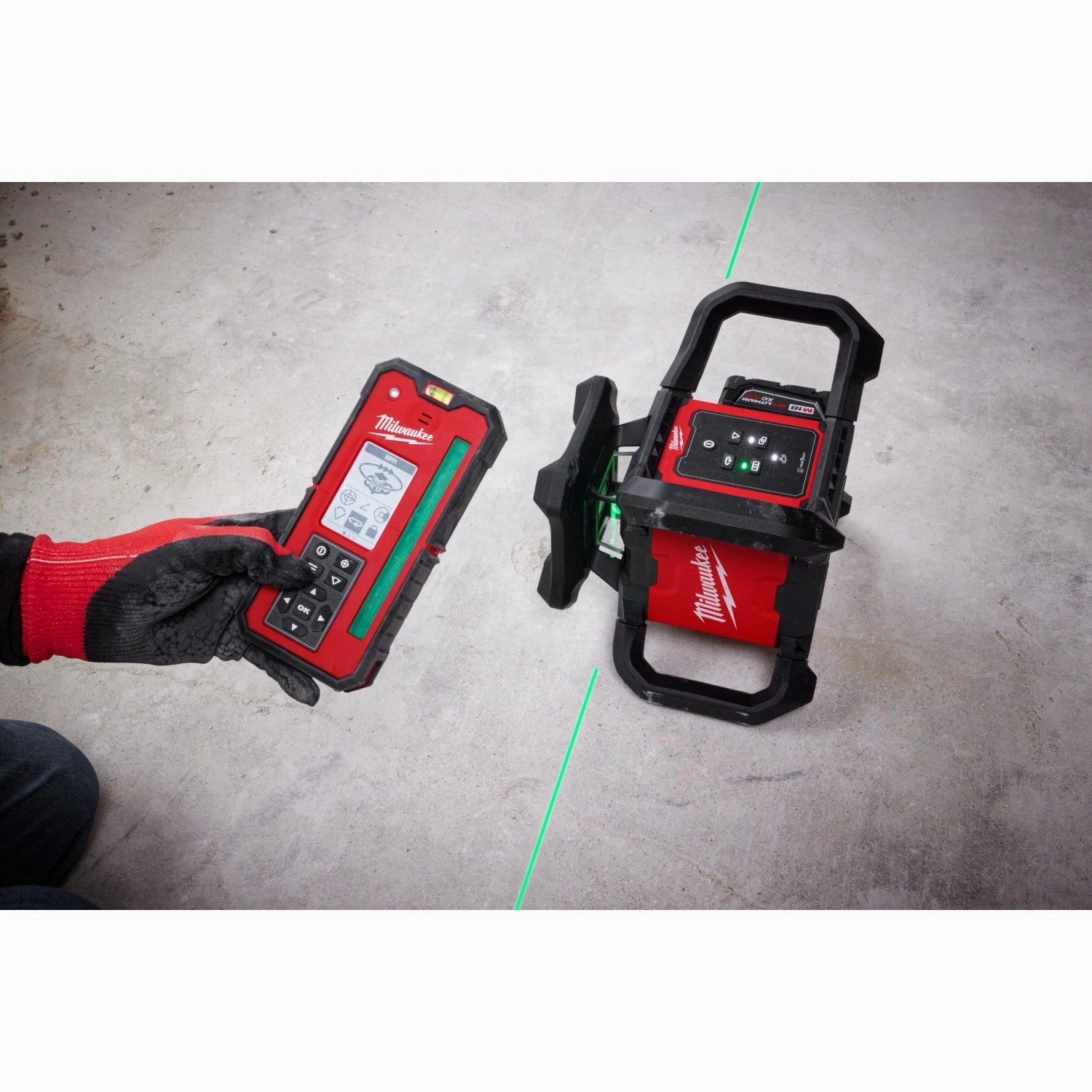

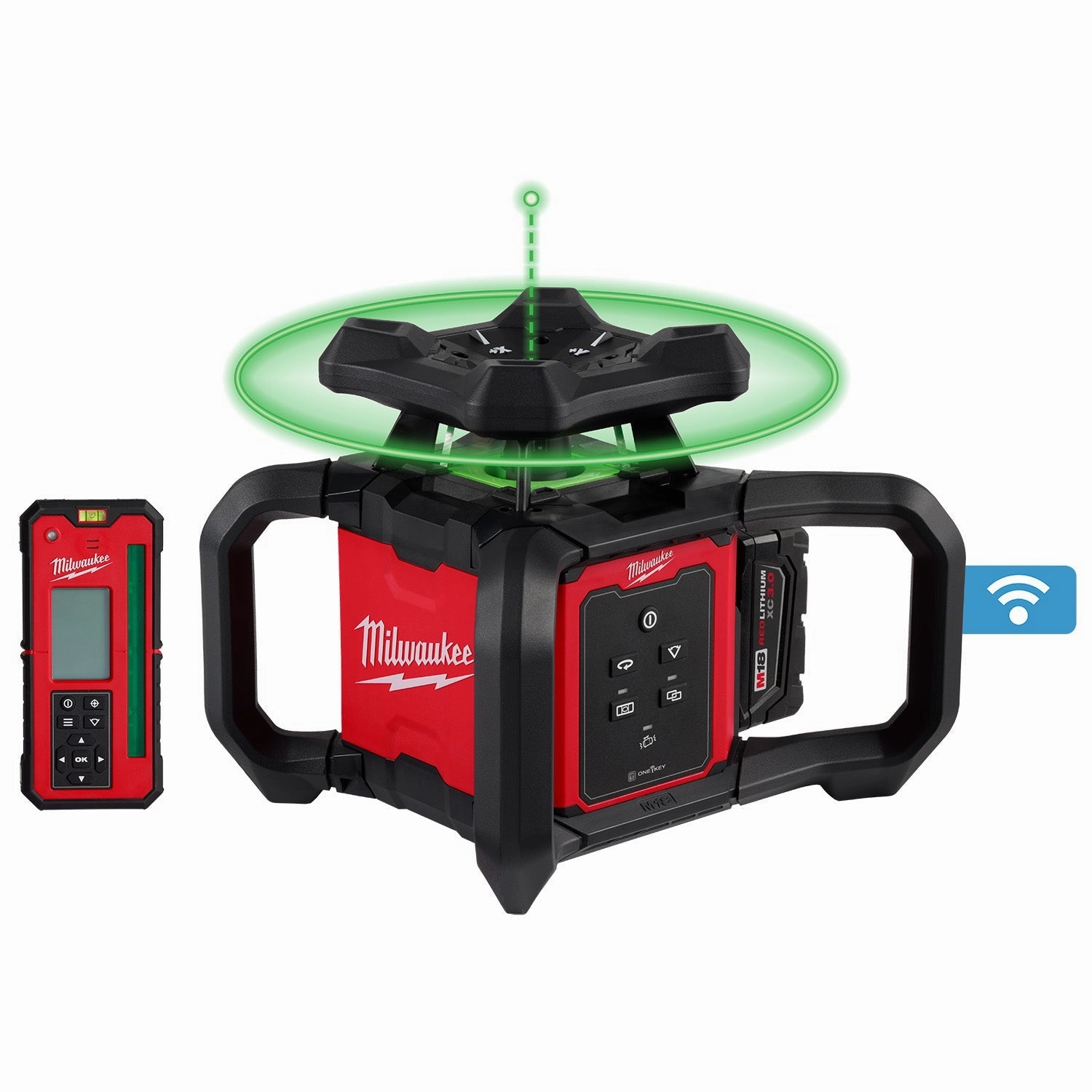

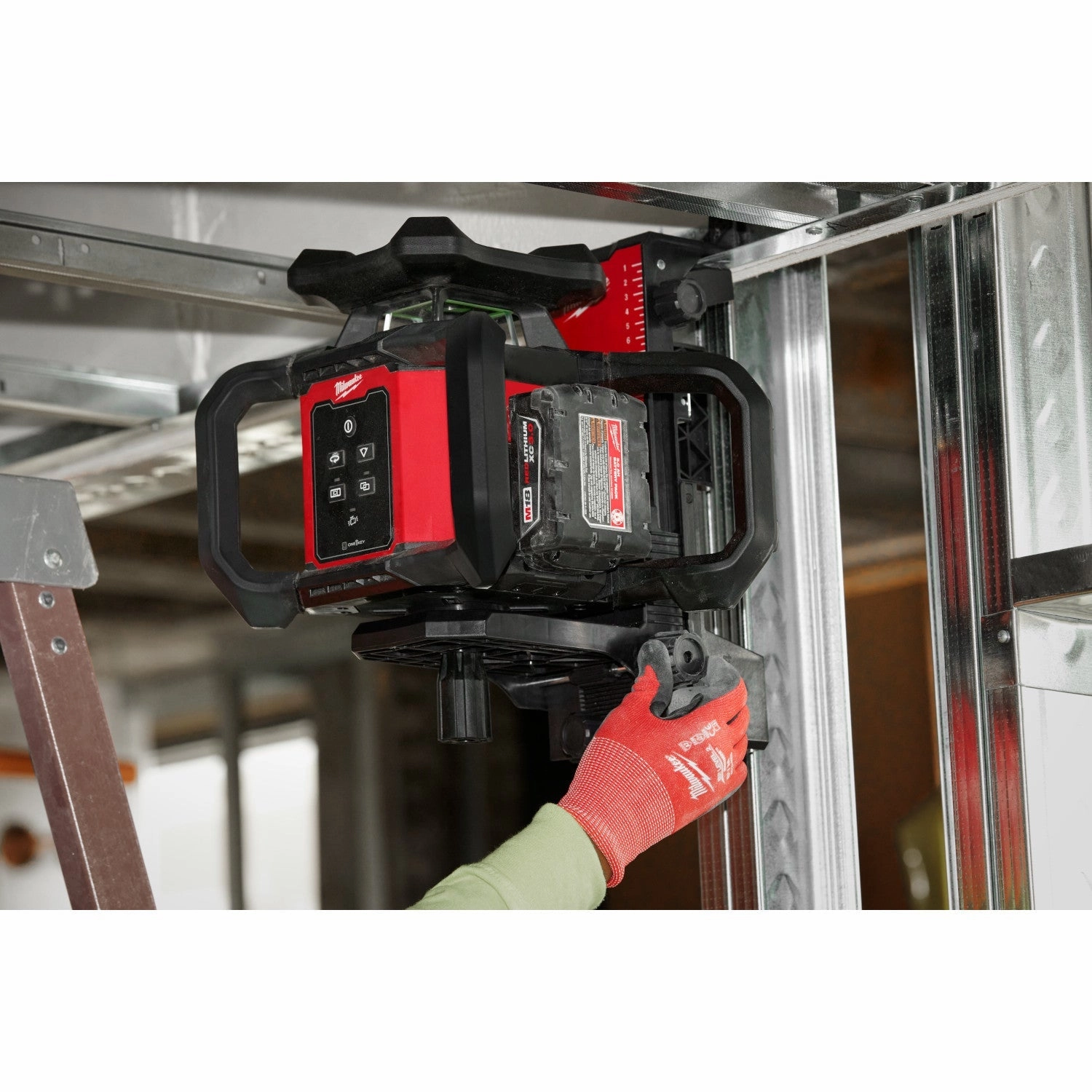

The MILWAUKEE® M18™ Green Interior Rotary Laser Level Kit features impact protection and a simplified setup. Designed for harsh jobsite conditions, we ensure your laser is protected, withstanding up to a 1.5M drop and a 2M Tripod tip. The all-in-one Remote and Receiver features Center-Find, for easy, fast, and automatic long-range alignment. This remote/receiver detects beams up to 1,000ft and features simplified menu navigation with a user-friendly design. The amplified rare earth magnets provide the remote/receiver with a strong hold onto steel studs. The included Wall Mount provides the fastest mounting with a single dial setup, the wall mount can easily mount lasers on horizontal or vertical materials. The M18™ Green Interior Rotary Laser is a part of the M18™ System, fully compatible with over 200 solutions.
Features
- Withstands 1.5m Drops – Reinforced Housing
- Automatic Alignment: Center Find
- Simplified Menu Navigation
- 1/16" Horizontal Accuracy1/8" Vertical Accuracy
- 1,000 Ft. (Diameter) Working Range w/Receiver
- 300, 600, 1,200 RPM
- Sweep Mode – Variable Scan Angles
- Vertical Plumb Dot
- Laser Remote/Receiver Reduces Interference - Strobe Light Protection
- Laser Remote/Receiver Features Easy Read Backlit Display
- IP 66 Rated Protection
- Low/High Bump Sensitivity Mode
- ONE-KEY™ Tracking and Tool Management
- Fits All M18™ Batteries
- 5 Year Tool Warranty, 3 Year Battery Warranty, 2 Year Remote/Receiver Warranty, and 3 Year Wall Mount Warranty
Includes
(1) M18 Green Interior Rotary Laser; (1) Laser Remote/Receiver; (1) Wall Mount; (1) Remote/Receiver Clamp; (1) M18 XC 3.0 Battery; (1) M18 & M12 Charger; (1) Carrying Case
Warranty
5 Year (Tool), 3 Years (Battery)
Specifications
| Mounting Method: | Wall or Tripod |
| Mount Options: | 5/8" x 11" Thread |
| Laser Class: | 2 |
| Color Finish: | Black |
| Battery Voltage *: | 18 |
| Accuracy: | Horizontal: 1/16" at 100' Vertical: 1/16" at 100' |
| Auto Leveling Range: | 12° in X and Y Axis |
| Batteries Included: | Yes |
| Battery Quantity and Size: | M18 5.0aH |
| Case Included: | Yes |
| Indoor Outdoor: | Indoor/Outdoor |
| Laser Beam Color: | Green |
| Laser Projection: | Horizontal and Vertical |
| LED Display: | Yes |
| Maximum Beam Distance: | 1000' |
| Beam Type: | Class 2 |
| Material Application: | Flooring; 90 Degree Square Applications; Accoustical Tile; Alignment; All-Purpose; Aluminum; Aluminum Cable; Angle Iron; Asphalt; Block; Brick; Buffing; Cast Iron; Ceiling Tile; Cement Board; Ceramic Tile; Ceramic Tile, Glass; Clay/ Soil; Concrete; Conduit; Connecting Tools to Lanyards; Copper; Copper Cable; Copper Tube; Cured Concrete; Cutting; Cutting Metal Tubing; Drilling; Drywall; Duct; Ductile Iron; Duct/Sheet Metal; Electrical Wire and Cable Crimping; Extension for Sockets; Fastening; Ferrous Metal; Fiber Cement; Fiberglass; General Purpose - Metal; Glass; Granite; Green Concrete; Grinding; Idenify Process Problems Safely; Inflation; Leveling; Masonry; Medium Metal; Metal; Metal and Wood; Mild Steel; Multi-Purpose; Nail Embedded Wood; NonFerrous Metal; Overlay; Piling; Pipe; Plaster; Plastic; Plumbing; Plywood; Polishing; Precision Work; PVC; Reaming conduit; Rebar; Reduce Risks of Dropped Items; Rubber; Running Pneumatic Nailers; Sanding; Sheet Metal; Stainless Steel; Steel; Stone; Stone Aggregates; Strut; Stucco with Mesh; Tag and Track Tools; Thermal Detection; Thick Metal; Thin Metal; Threaded Rod; Tile; Tile, Natural Stone; Tool Storage; Transportation; Tube; Vinyl Hose; Vinyl Tubing; Wood |
| Number of Batteries Required: | 1 |
| Number of Beams: | 1 |
| Number of Dots: | 2 |
| Number of Level Vials: | 2 |
| Number of Lines: | 1 |
| Number of Plumb Vials: | 1 |
| Number of Scanning Modes: | 4 |
| Range With Detector (ft): | 1000 |
| Rotating Speed: | 300, 600, 1200 |
| Run Time hours: | 26 |
| Self Leveling Range Maximum: | 12° in X and Y Axis |
| Slope: | /- 6° |
| Tripod Mount Dimensions: | 5/8" x 11" Thread |
| Material *: | Polycarbonate |
| Battery Size: | 18 Volt |
| Case Material: | High Density Polyethylene |
| Laser Level Type: | Plane |
| Out-of-Level Shutoff: | Yes |
| Plumb Up: | Yes |
| Projects Beam 360 degrees: | Yes |
| Total Number of Vials: | 2 |
| Visual/Audible Indicators: | Yes |
| Power Source *: | Cordless |
