Description
HKS has tested various ways that the danger of high chronic oil temperatures raises with GR Yaris, and HKS has developed a Turn-Flow Type oil cooler that allows continuous track driving. This provides competent oil management and continuous sustained performance.
The tests showed a clear high level of oil management, with about four times as many hours/miles driven in stock conditions. Authentic tests using real vehicles prove the high standards of HKS product.
Development Concept & Features
- Perfect Oil management with output increase modification.
- Provides a cooling performance that allows the vehicle to perform many laps.
- Traditional layout allowing both oil and water temperature control.
- Although Turn-Flow Type Core has small core surface for improved cooling performance.
- Oil aluminum pipes are a highly efficient style that makes effective use of limited space.
Kit Includes
- Oil Cooler Core

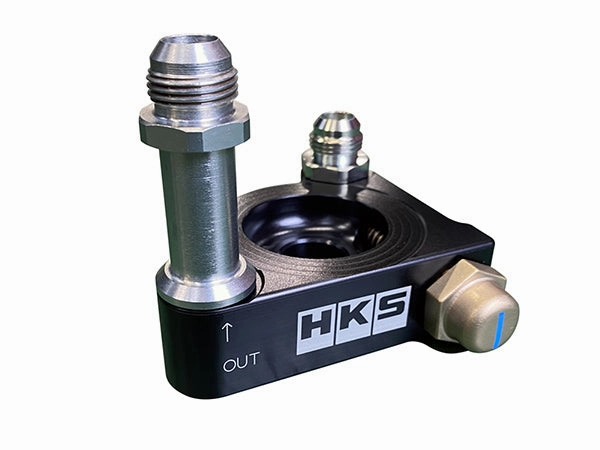

- Billet Aluminum Sandwich Plate

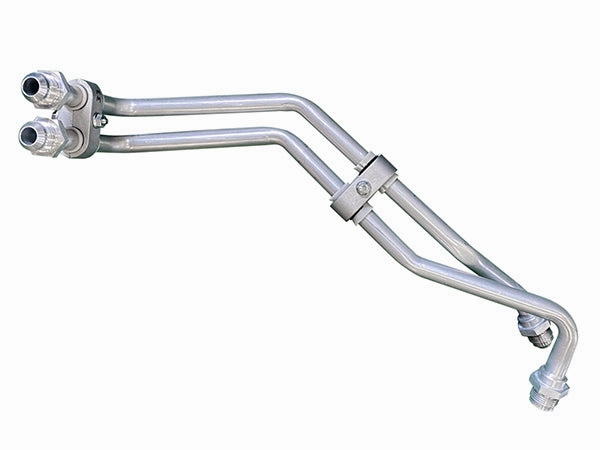

- Oil Cooler Pipe

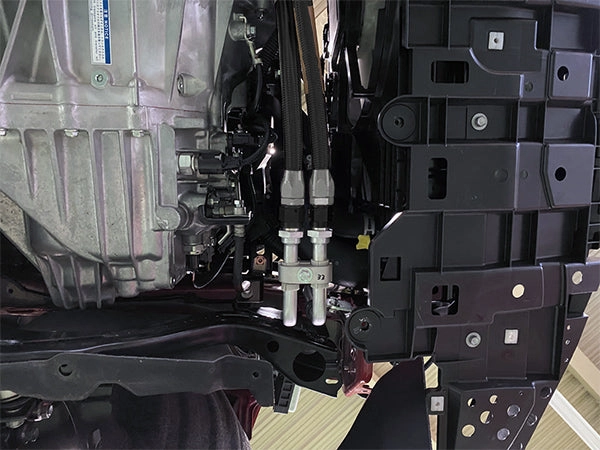

- Oil Cooler Hose (#AN10)
HKS Test Data
Track Data
| Track Name | FSW Short Course |
| Surface | Asphalt |
| Length | 810m~920m |
| Turms | 4~8 |
| Temperature | 25℃ |
Test Vehicle
| Suspension | HIPERMAX S |
| Exhaust | SUPER TURBO MUFFLER |
| Intake | HKS Cold Air Intake System |
| ECU | Power Editor |
| Turbo | Stock |
| Intercooler | HKS Intercooler Kit |
| Oil | HKS SUPER OIL Premium 0W-20 |
| Vehicle | GR YARIS |
| Model | GXPA16 |
| Engine | G16E-GTS |
| Model Year | 20/09 - |
| Core Size - Row | 412×114×40・10 (turn flow) |

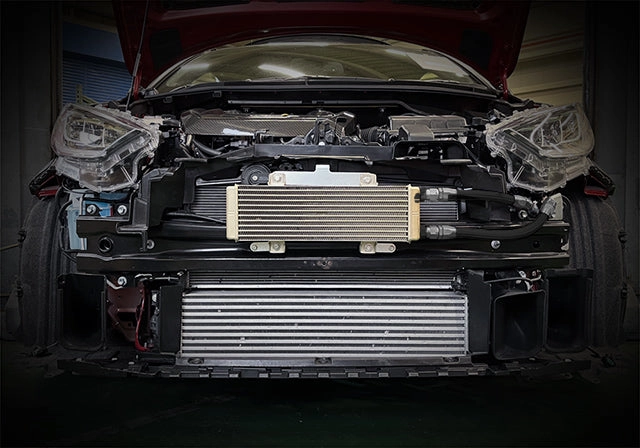

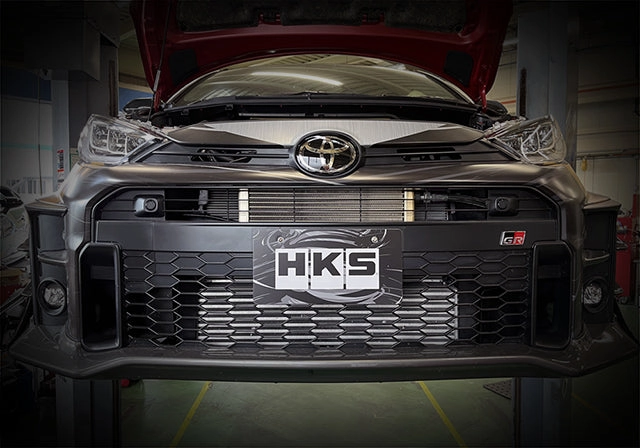

| Core Location | In front of the radiator |
| Type | S type |
| Hose Size | #10 |
| Code No. | 15004-AT113 |
| Manual | |
| Remarks | Standard Installation Time: 5~6 hours. Check the oil gauge and adjust the oil level to the correct level. |
Check Note
Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
