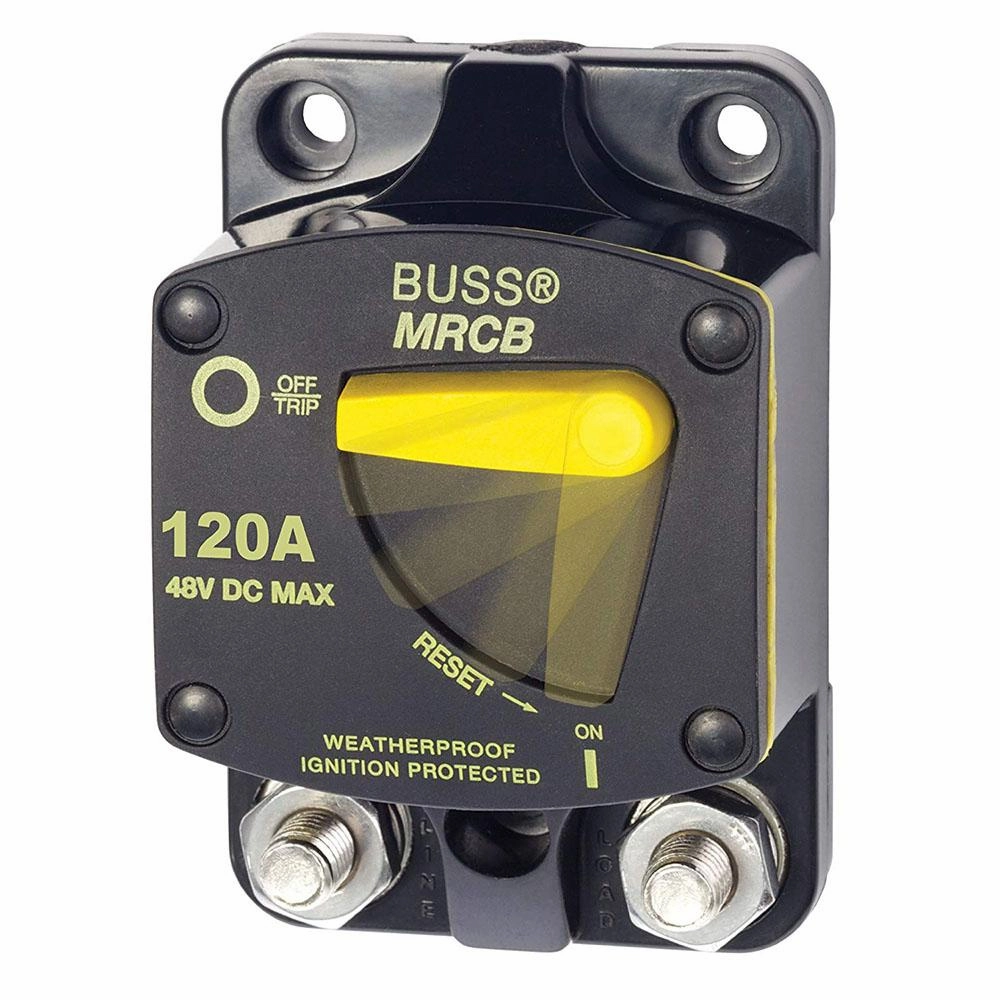

eFEATURES
- CB187F Series, Type III, High Amp Marine Rated Circuit Breakers are specifically designed to meet the needs of marine applications but can also be used for trucks, buses, RVs, and more
- Flush mount design with pull-to-trip lever that functions as an on-off switch (capable of withstanding 3000 on/off cycles at 48Vdc)
- 120 Amp, 48 Vdc; manual reset
- Weatherproof housing; 5/16-18 threaded studs; stainless steel hardware installed
DESCRIPTION
Bussmann CB187F Series, Type III, High Amp Marine Rated Circuit Breakers are specifically designed to meet the needs of marine applications but can also be used for trucks, buses, RVs, and more. Flush mount design with pull-to-trip lever that functions as an on-off switch (capable of withstanding 3000 on/off cycles at 48Vdc). 120 Amp, 48 Vdc. Features: manual reset, weatherproof housing, 5/16-18 threaded studs, stainless steel hardware. CB187F high amp circuit breakers offer 5kA interrupting ratings at 12 volts DC and ignition protection per ABYC E-11, comply with the SAE J1171 standard for ignition protection, and have applications in battery charging systems that use battery isolators to manage and protect batteries in multi-battery installations.
